The Fiber Optic PLC splitter Functionality

A PLC splitter built using optical semiconductor technology is known as a Planar Lightwave Circuit (PLC) splitter. The fabrication of a PLC splitter is comparable to that of semiconductors. A standard PLC splitter has an input and output array, the number of which is determined by the split ratio, as well as a PLC chip.



We are all aware that optical splitters must be employed in the equipment cabinets, boxes, main equipment rooms, exchanges, and closures that hold the accompanying fiber management systems and optical line terminal equipment. Additionally, they must be utilized in the cabinets and boxes that are given with the transmission equipment in the customer's facility.



Each optical splitter will be offered as a single device or in a modular design, with or without input and output connections already fitted.



One or two optical signals can be evenly split into several optical signals using PLC splitters.

Widely utilized in passive optical networks are PLC splitters, which are passive optical devices.

Telecommunications firms rely on Passive Optical Networks (PON) and dependable PLC splitters to deliver fiber optic lines to a rising number of customers as the need for increased bandwidth continues to grow. PLC splitters maximize a fiber network's user capacity and boost ROI by enabling several users to use a single PON network interface.



One or more inputs can be divided into two or more outputs using a fiber optic splitter, which is a passive optical device that connects three or more fiber ends. For a wide range of applications, alternative optical splitters configurations with split ratios (1: N or 2: N, where N is 2, 4, 8, 16, or 32) and various encapsulations should be made accessible.



FBT: Fused Biconic Tapered: a fiber coupler is a device that effectively aligns the pairs of two nearby fibers such that light may go from one fiber to the other after the buffer has been removed. The input taper and output taper are maintained after heating and stretching the fiber pairs.



Manufacturing passive fiber-optic components use a method called a planar lightwave circuit (PLC). It creates tiny fiber-optic devices, such as fiber splitter, using semiconductor (i.e. integrated circuit) production processes, making the devices more durable and compact.

FBT and PLC Fiber Optic Splitters Differences

To share the optic network with multiple users, fiber splitter is an important component in PON and FTTx architectures. Splitting one optic light beam into several parts at a certain ratio is the basic principle of fiber optic splitter. Fiber optic splitters can be divided into FBT and PLC splitters as per different manufacturing technologies. When choosing between them, you may wonder about the differences between the two splitter types.

FBT & PLC Splitters Differences

PLC and FBT splitters still have many differences although they may look similar to each other when it comes to actual applications. Here we are going to compare them from several other aspects.

Wavelength Range

Ranging from 1260 nm to 1620 nm, the PLC splitter has a wider operating wavelength. Thus to most of the applications in PON and FTTx networks, it can be applied. Only to be used for 1550nm, 1310nm, and 850nm wavelengths, and FBT splitter has a limitation on the contrary.

Splitting Ratio

By the outputs and inputs of a splitter, the Splitting ratio is decided. With the splitting ratio of 1:64, A PLC splitter is available which means into 64 splits, one light beam can be separated at a time. However, for networks requiring the splitter configuration of fewer than 4 splits, and FBT splitter is used typically. It will cause a higher failure rate and more errors will occur when its splitting ratio is larger than 1:8. Thus to the number of splits in one coupling, the FBT splitter is more restricted. The fiber coupler is also useful.

Price

Its cost is generally higher than the FBT type Owing to the complicated manufacturing technology of the PLC splitter. FBT splitter is a cost-effective solution if your application is short of funds and simple.

Temperature-Dependent Loss

By the sensitivity of the device and manufacturing process, Temperature-dependent loss (TDL) of the splitter is affected. Insertion loss will influence the performance of the fiber splitter and increase once the working temperature of the splitter is out of range. At the temperature of -40 to 85 Celsius degrees, the PLC splitter can work while at -5 to 75 Celsius degrees, the FBT splitter can only work.

Increasing Popularity of polarization-maintaining Fiber

Optical networks have become popular due to increasing demands for bandwidth. It becomes important to use existing fiber-optic networks very effectively because installation of new fiber-optic networks is very expensive. Dispersion and attenuation are the main parameters that limit the optical networks. The uses of two polarization axes are improved by the efficiency of optical networks which are very much similar to the technology used in radio technologies. The use of two polarization planes is allowed because of the use of polarization maintaining splitter.

Theoretically, there is no birefringence in an optical fiber with a circular core, and in such an optical fiber the polarization state does not change during propagation. However, in reality, due to external perturbations or manufacturing imperfection in an optical fiber, a small amount of birefringence is always present. Such birefringence is inherently random, and in an optical fiber between two polarization modes, it results in random power coupling. The output polarization state then becomes unpredictable and also differs with time.

PM fibers need to meet critical optical and mechanical specifications, such as attenuation and tensile strength. In characterizing their birefringence properties polarization maintaining isolator have two specifications – beat length and holding (H) parameter. These are complex measurements, but characterizing how well the fibers maintain the two polarization modes they are necessary.

By intentionally inducing uniform birefringence along the entire fiber length a polarization-maintaining Fiber (PM Fiber, PMF) maintains two polarization modes, hence they prohibit random power coupling between two polarization modes.

In a single-mode fiber, the transmission of a source laser’s output is done with two linear polarization modes that propagate at right angles to each other. For a moment imagine that this fiber is an ideal single-mode waveguide:

• the fiber and source laser temperatures always remain constant;
• Polarization maintaining circulator does not have bends and no loss;
• there is perfect uniformity in the core material;
• Compared to the cut off wavelength the laser wavelength is greater, and all the laser energy is concentrated in the core;
• Lateral stress is zero (no external stress from cabling, placement, supports, etc., or even, hypothetically, no gravity or air pressure).

Know about the Working of Fiber optic splitter

Working of fiber optic splitter

Whenever in a network there is the transmission of the light beam it needs to be divided into two or more light beams and for this purpose, a fiber splitter is used.

Whenever there is the transmission of the light signal, the light energy cannot entirely concentrate in the fiber core. Through the cladding of the fiber, a small amount of energy will be spread. The transmitting light in an optical fiber can enter into another optical fiber if two fibers are close enough to each other. Therefore, you can achieve the reallocation technique of optical signals in multiple fibers.

Splitter never generates power nor do they need it. Hence, it is a passive device. Splitters do not even contain any electronic components. It is a simple device. A fiber optic splitter is also referred to as a beam splitter.

In most fiber optic networks splitters are widely used. It consists of numerous input and output terminals, which are majorly applicable to a passive optical network like GPON, BPON, FTTX, EPON, FTTH, etc.

Into two types there is a division of the fiber optic splitters: Fused Biconical Taper (FBT) splitter and PLC splitter.

The most commonly used splitters are the FBT splitters. FBT splitters are accepted everywhere and are mainly used in passive networks.

PLC Splitter

PLC refers to a planar lightwave circuit. PLC splitter makes use of an optical chip as a micro-optical device so that the input signal can be split into various outputs. At the edge of the chip, there is the presence of a light circuit in ribbon form that is mounted on a carrier and fibers. PLC splitter divides the incident light beam (input light signal) into two or more light beams (output light signal) with the use of a fiber splitter chip. As the material of the lightwave circuit PLC splitter adopts silica glass. In PLC splitter the substrate, waveguide, and lid are three basic layers. PLC splitters can be further categorized into different types for various applications which include LGX box PLC splitters, block less PLC splitters, ABS PLC splitters, tray-type PLC splitters bare PLC splitters, mini plug-in type PLC splitters, and 1U rackmount PLC splitters.

Detailed Explanation of Polarization-Maintaining Fibers

With two linear polarization maintaining modes propagating at right angles to each other, a source laser’s output is transmitted in the case of a single-mode fiber.

Compared to cutoff wavelength the laser wavelength is greater, and all the laser energy is confined in the core

It does not have any bends and losses;

There is uniformity in core material;

The cladding and core are perfectly concentric and round;

There is consistency in the fiber and source laser temperatures;

Lateral stress is zero.

There would have been no coupling of power from one mode to the other and it is not at all possible along the fiber’s length. If a modulated signal is carried by a laser output then these two polarization maintaining splitter modes will carry the signal without any dispersion and no crosstalk.

There is no perfection in the manufactured glass materials and waveguides. There is the presence of sub-micron asymmetries and non-uniformities. If single-mode fibers are being cabled and placed in aerial or underground networks then they may experience lateral stress. In handholes, cabinets, closures, and other structures the cable can experience bends or even have coils of slack.

If it is not corrected then this polarization-mode dispersion can have limitations with the distance or the bandwidth of a fiber optic communication system. Thus, to reduce or compensate for this dispersion, fiber, cable, and system designers have developed many techniques. Preform have been optimized by fiber manufacturers and to minimize asymmetry, non-concentricity, and lateral stresses they have drawn processes.

So, in telecom fibers polarization can be effectively managed. Through this, you can find a way to make accurate measurements of motion, vibration, or other phenomena that affects the fiber.

Similar issues are addressed by both the single-mode communications fibers and PM fibers. Few of them are minimizing the effect of external stresses and bends on the polarization maintaining circulator in the fiber. For building asymmetric geometric features and SAPs into fiber you will get many ways that will ultimately give rise to several types of PM fibers. To reduce or compensate for this dispersion, fiber, cable, and system designers have developed many techniques.

All About Polarization-maintaining Fibers

Optical fibers even if have a circularly symmetric design always exhibit some degree of birefringence because in practice you will always find some amount of mechanical stress or other effects which break the symmetry. The polarization maintaining of light changes in an uncontrolled way gradually.

Principle of Polarization-maintaining Fibers

By using a polarization-maintaining fiber the above problem can be fixed and it is not a fiber without birefringence but on the contrary a specialty fiber with a strong built-in birefringence (high-birefringence fiber or HIBI fiber, PM fiber). The polarization maintaining splitter of light which is launched into the fiber is aligned with one of the birefringent axes and even if the fiber is bent this polarization state will be preserved. The physical principle present behind this can only be understood in terms of coherent mode coupling. Due to the strong birefringence, the propagation constants of the two polarization modes are significantly different and because of it the relative phase of such co-propagating modes rapidly drifts away. During heating, the fibers are slowly stretched and tapered.

Therefore, both modes get effectively coupled by any disturbance along with the fiber and it takes place only if it has a significant spatial Fourier component with a wavenumber matching the propagation constants difference in two polarization modes. The usual disturbances in the fiber are too slowly varying to do effective mode coupling only if the difference is huge. In quantitative terms, compared to the typical length scale on which the parasitic birefringence varies the polarization beat length needs to be significantly shorter.

Few Ways of Realizing Polarization-maintaining Fibers

On the opposite sides performance on of the core, for introducing strong birefringence a commonly used method is including two stress rods of the modified glass composition. One can make bow-tie fiber with different techniques, where the stress elements have a different shape and reach closer to the fiber core so that you can get a stronger polarization maintaining circulator. Due to the strong birefringence, the propagation constants of the two polarization modes are significantly different and because of it the relative phase of such co-propagating modes rapidly drifts away.

Enrich Your Knowledge About Fiber Optic Splitter

In today’s optical network topologies, fiber optic splitter is quite significant in helping users maximize the performance of optical network circuits. A fiber splitter is a passive optical component that splits an incident light beam into two or more light beams and vice versa and it is also called a beam splitter. The device consists of multiple input and output ends. Fiber optic splitter can be implemented for the convenience of network interconnections whenever there is a need for the division of light transmission in a network.

Working of Fiber Optic Splitter Work

The working principle of fiber optic splitter can be generally described in the following way. The light energy can not entirely concentrate in the fiber core when there is the transmission of the light signal in a single-mode fiber. Through the cladding of fiber, a small amount of energy will be spread. In simple words, if two fibers are close enough to each other then in an active optical cable the transmitting light can enter into another optical fiber. Therefore, in multiple fibers, the reallocation technique of optical signal can be achieved.

Classification of Fiber Optic Splitter

Today you will find that there are two types of fiber optic splitters. They are PLC splitter (planar lightwave circuit) and FBT splitter (fused biconical taper).

With the use of an optic splitter chip PLC splitter divides the incoming signal into multiple outputs. One optic splitter chip can achieve at most 64 ends. For larger applications PLC splitter is usually used. To the wavelength, the losses of PLC splitter are not at all sensitive, which then for multiple wavelengths transmission satisfies the need. The size of a PLC splitter’s configuration is small and is compact, thus the installation space can be greatly saved.

With a heat source that is similar to a one-to-one fusion splice, the fusion of an FBT splitter is done. Under a heating zone, fiber patch cable is stretched to form a double cone. Due to the commonly used materials, the cost of an FBT splitter is lower, and the splitting ratio is adjustable. But to wavelengths the losses are sensitive. According to wavelengths the devices should be selected.

Understanding Optical Fiber Polarization Mode Dispersion

While they travel along with fiber, Dispersion with polarization maintaining splitter is the fact that light pulses spread out. Because the speed of light in the fiber depends on the propagation mode and its wavelength i.e. the light color, this fact occurs.

A small range of wavelengths (colors) constitutes the light pulses in optical fibers. Practically, a pure single colored light can be generated by no light source. In either a relatively broad range as a LED or a narrow wavelength range as a semiconductor laser, they generate light always.

Various light wavelengths travel at different speeds in optical fibers. This means as compared to others, at the receiver, some might arrive a bit later. As compared to that of the transmitter side, this fact offers broader received light pulses. Dispersion is this pulse broadening.

By the dependence of refractive index on wavelength, the transmission of two different polarizations of light (PMD), multimode transmission (different mode travels at a different speed), and variations in waveguide (optical fiber) properties with wavelength, Dispersion with polarization maintaining isolator can also be caused through single-mode fibers. In a fiber-optic digital communication system, Dispersion's impact on bit rate is present.

Dispersion can limit the distance a lightwave signal can travel through an optical fiber like power loss in a fiber optic link. But it makes the signal blurry; dispersion does not weaken a signal different than attenuation. For example, at the end of the fiber, the pulse spreads to 10 milliseconds if you send out a 1-millisecond width pulse but then in time that the signal becomes unintelligible, signals blur together.

Impact of PMD on single-mode fiber optic systems

Only a few years ago, Getting significant when high-speed fiber-optic digital communication systems came to play, such as the 40Gbit/s systems, the potential effects of polarization mode dispersion occurs. In magnitude, Polarization mode dispersion (PMD) with polarization maintaining circulator is smaller than other types of dispersions, but at least until now, it is tougher to compensate for. With data rates higher than 2.5Gbit/s, PMD becomes a problem in systems. To sending higher data rates, PMD makes more challenges over long distances.

Know about the Polarization Maintaining Fibers

Polarization

A type of electromagnetic wave is Light. Denoted by E, It consists of oscillating electrical fields, and denoted by B, magnetic fields. By studying its electrical field E, Its properties can be described although, in terms of the magnetic field, we could just as well describe light and its effects. The polarization maintaining splitter is very useful.

Light-is-a-electromagnetic-wave and in many directions, Light waves can vibrate. Those that are vibrating in a single plane and one direction such as up and down are known as polarized light. Those that are vibrating in more than one plane and more than one direction such as both left/right and up/down are called unpolarized light.

Using a polarization filter is the most common method of achieving single polarization. Capable of blocking one of the two planes of vibration of an electromagnetic wave, Polarization filters are made of special materials.

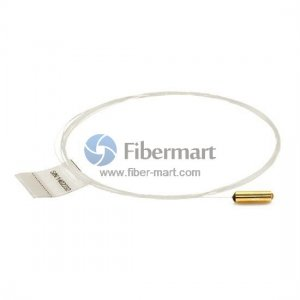

Polarization maintaining fiber

A special type of single-mode fiber is Polarization maintaining fiber (PM Fiber). Normal single-mode fibers can carry randomly polarized light. However, to propagate only one polarization of the input light, PM fiber is designed.

With no or little cross-coupling of optical power between the polarization modes, the polarization of linearly-polarized light waves launched into the fiber is maintained during propagation in polarization-maintaining fiber. For some fiber optic components such as external modulators and polarization maintaining isolator that require a polarized light input, this polarization-maintaining feature is extremely crucial.

By inducing stresses in the material itself, this characteristic is achieved during the manufacturing process. Circular polarization-maintaining fiber and linear polarization-maintaining fiber are the two categories of polarization maintaining fiber (PMF) available.

Polarization maintaining fibers applications

In special applications, such as slab dielectric waveguides, interferometry, and fiber optic sensing, PM optical fibers are used in long-distance bidirectional optical transmission systems, polarization maintaining patch cable or coherent optical transmission systems, PM fibers are expected to be used.

Where the polarization plane of the optical signal is important, they may also be used in transmission applications such as coupling for optical-electrical integrated circuits and transmission lines for optical sensors. To keep cross-coupling between polarization modes at minimum PM fibers and maintain the polarization of the incoming light is used in lithium niobate modulators, polarization-sensitive systems and amplifiers are used.
